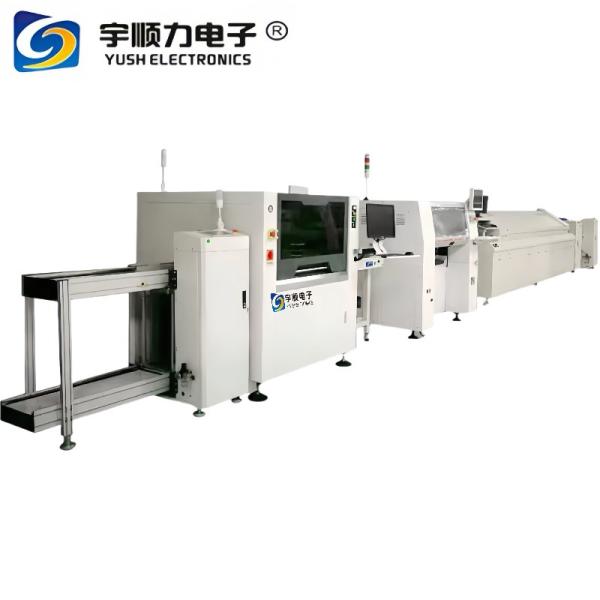

Name: High Professional Customization Multi Function SMT Line
Brand: YUSH
Price: 10000 USD

Brand Name : YUSH

Model Number : YSL-P6

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1set

Price : USD10000

Payment Terms : L/C, D/P, T/T

Supply Ability : 100sets

Delivery Time : 5-7days

Packaging Details : wooden case

Dimension : 1050x750x1650 mm

Power supply : 1 -PH, 220VAC 50/60HZ

PCB Size : 600 x 350 mm

Air pressure : 4.5-6 kg/cm

Weight : 300 Kg

Contact Now

FEATURE:

Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.

Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.

Modular universal bench, thimble random placement, easy conversion.

With alignment device for PCB board and frame.

Model	P3	P6	P12
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size(mm)	370470,550650	370470,550650	370470,550650,1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm
Option: Special size can be customized

High Professional Customization / Multi Function SMT Line
